Benchmark: Kinematic rupture on normal fault, incl GPS

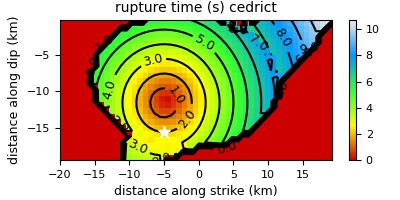

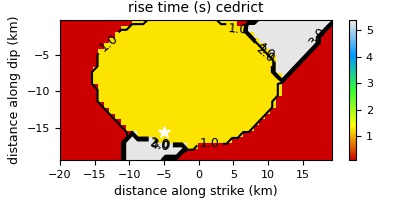

Kinematic inversion to obtain the rupture process using the elliptical sub-fault approximation. 2 Ellipses were used. Data and synthetics were band-pass filtered from 0.1 to 1.0 Hz using a Butterworth filter (4 poles, 2 passes). GPS data were not used. Algorithm for the inversion: Neighbourhood algorithm. Cost function: L2-norm. NOTE (09/22/2014): Two errors have been found for that inversion. (1) Qp and Qs were evaluated from Brocher (2008) instead of being assumed infinite. (2) The range given for the hypocentre depth in the inversion did not include the actual hypocentral depth used for the SIV model.

Interpolation parameters (leave blank for default):
